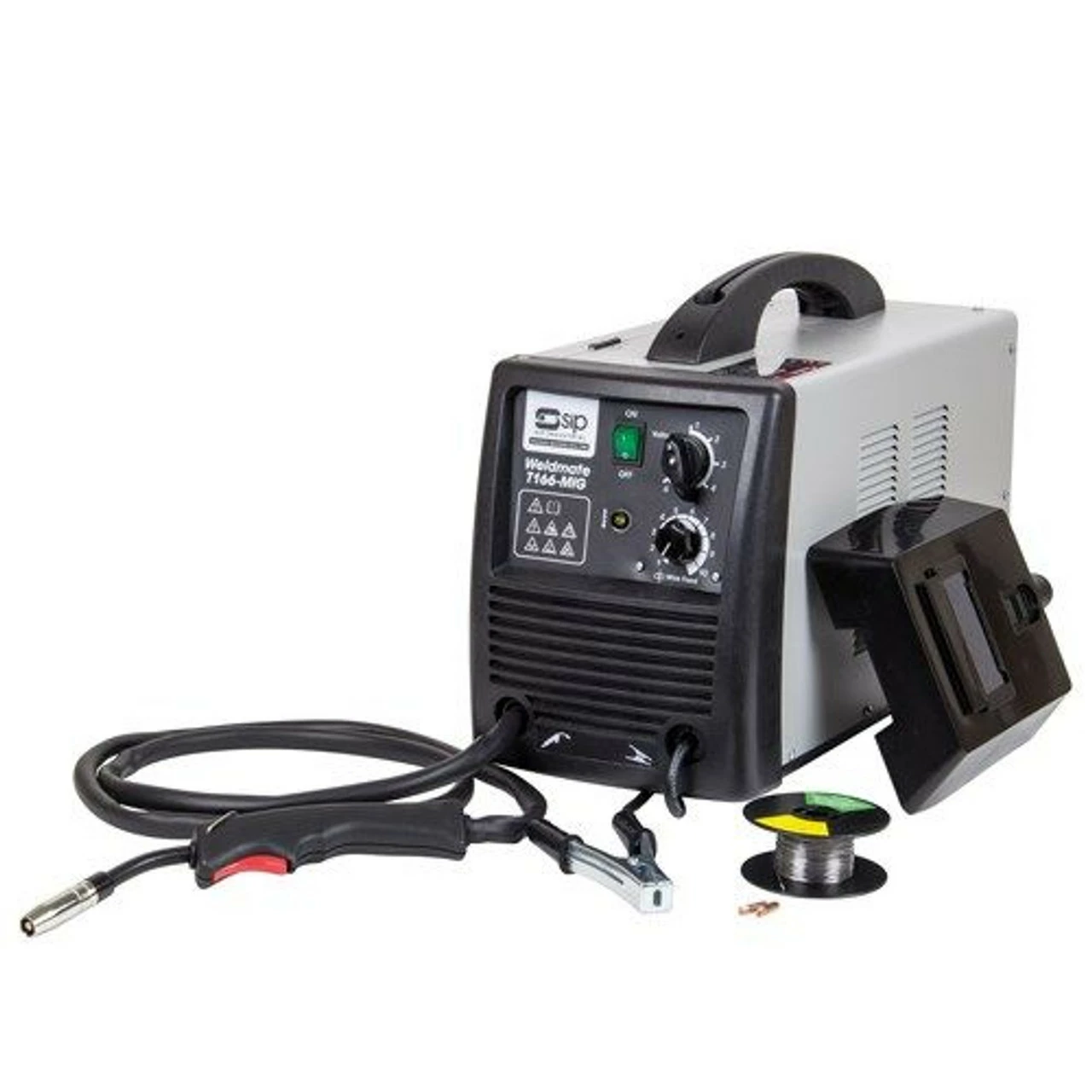

SIP 05756 T166-MIG Dual Transformer Welder

SIP 05756 T166-MIG Dual Transformer Welder

The SIP 05756 T166-MIG Dual Transformer Welder is mainly for the serious Home/Trade welder and offers portability, ease-of-use and convenience at value-for-money prices.

Features:

• T166-MIG Dual Transformer Welder
• Portable
• Easy to use
• 240V (16amp) supply
• 30amps – 165amps (peak) current range
• Ready to use in gasless mode
• Weld Material – Mild Steel, Stainless, Aluminium
• Thermal overload indication
• Heavy duty casing for added durability
• Dual purpose

Specification:

• Supply: 240V (16amp)
• Max. Open Circuit Voltage: 32v (DC)
• Output Current: 30 – 165amps (peak)
• Output Voltage: 15.5v – 19.25v
• Wire Diameter: 0.6mm – 0.8mm
• Wire Spool Size: 0.7kg / 5.0kg
• Wire Type: Solid/Flux-cored
• Weld Thickness: 0.7 – 6.2mm
• Max. Wire Speed: 16m/min
• Weld Material: Mild Steel, Stainless, Aluminium
• Duty Cycle: 105amps @ 20%, 60amps @ 60%, 47amps @ 100%
• Power Settings: 6 settings
• Insulation Class: H
• Protection: IP21S
• Gross Weight: 25.8kg
• Packaged Dimensions: 375 x 305 x 630mm
• Additional: Thermal overload indication

SKU: SIP-05756
